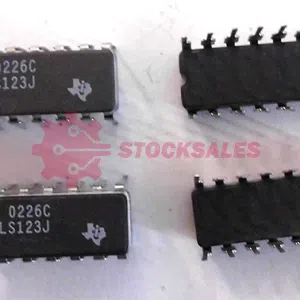

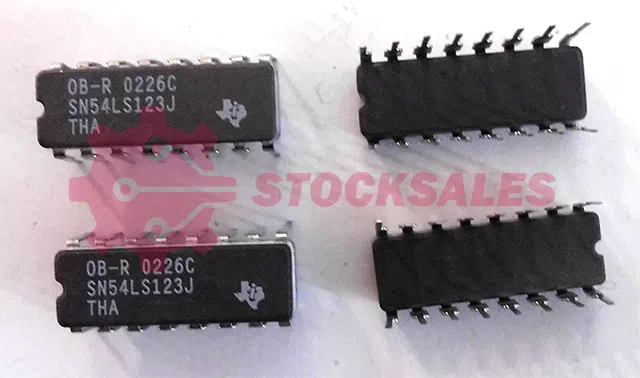

These d-c triggered multivibrators feature output pulse-duration control by three methods. The basic pulse time is programmed by selection of external resistance and capacitance values (see typical application data). The ‘122 and ‘LS122 have internal timing resistors that allow the circuits to be used with only an external capacitor, if so desired. Once triggered, the basic pulse duration may be extended by retriggering the gated low-level-active (A) or high-level-active (B) inputs, or be reduced by use of the overriding clear. Figure 1 illustrates pulse control by retriggering and early clear.

The ‘LS122 and ‘LS123 are provided enough Schmitt hysteresis to ensure jitter-free triggering from the B input with transition rates as slow as 0.1 millivolt per nanosecond.

D-C Triggered from Active-High or Active-Low Gated Logic Inputs
Retriggerable for Very Long Output Pulses, Up to 100% Duty Cycle
Overriding Clear Terminates Output Pulse
‘122 and ‘LS122 Have Internal Timing Resistors

Number of channels 2
Supply voltage (min) (V) 4.75
Supply voltage (max) (V) 5.25
Technology family LS
Input type Bipolar
Output type Push-Pull
Supply current (µA) 20000
IOL (max) (mA) 4
IOH (max) (mA) -0.4
Features Retriggerable, Standard speed (tpd > 50ns)
Operating temperature range (°C) -55 to 125
Rating Military
