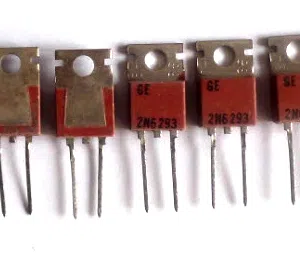

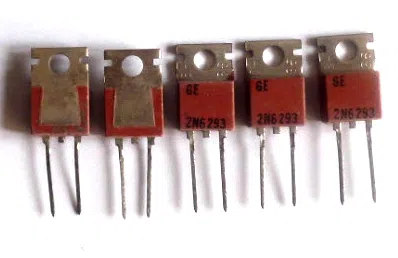

Type Designator: 2N6293

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 40 W

Maximum Collector-Base Voltage |Vcb|: 80 V

Maximum Collector-Emitter Voltage |Vce|: 80 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 7 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 0.5 MHz

Forward Current Transfer Ratio (hFE), MIN: 30

Noise Figure, dB: –

Package: TO220
