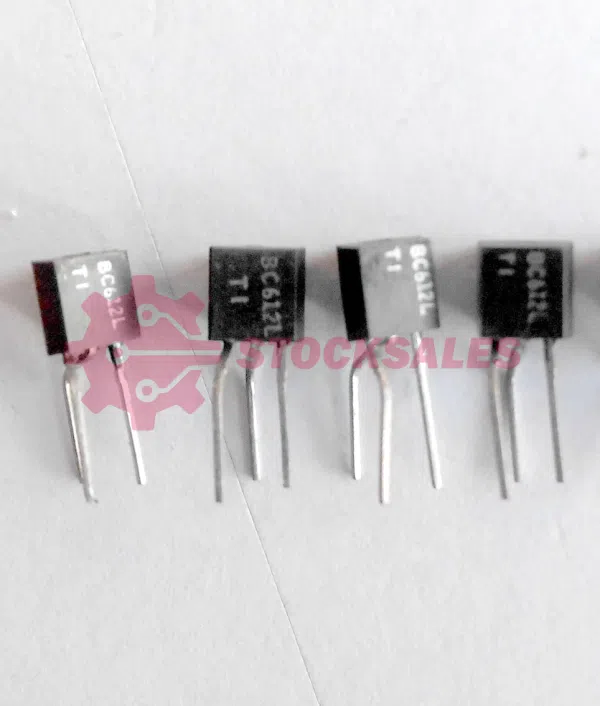

Type Designator: BC612L

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 0.3 W

Maximum Collector-Base Voltage |Vcb|: 75 V

Maximum Collector-Emitter Voltage |Vce|: 70 V

Maximum Collector Current |Ic max|: 0.2 A

Max. Operating Junction Temperature (Tj): 125 °C

Transition Frequency (ft): 200 MHz

Forward Current Transfer Ratio (hFE), MIN: 60

Noise Figure, dB: –

Package: TO92
