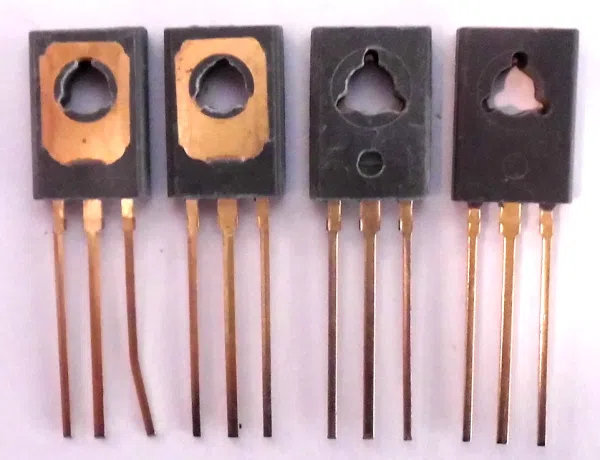

Type Designator: BD131

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 11 W

Maximum Collector-Base Voltage |Vcb|: 70 V

Maximum Collector-Emitter Voltage |Vce|: 45 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 3 A

Max. Operating Junction Temperature (Tj): 125 °C

Transition Frequency (ft): 60 MHz

Forward Current Transfer Ratio (hFE), MIN: 40

Noise Figure, dB: –

Package: TO126
