MF500

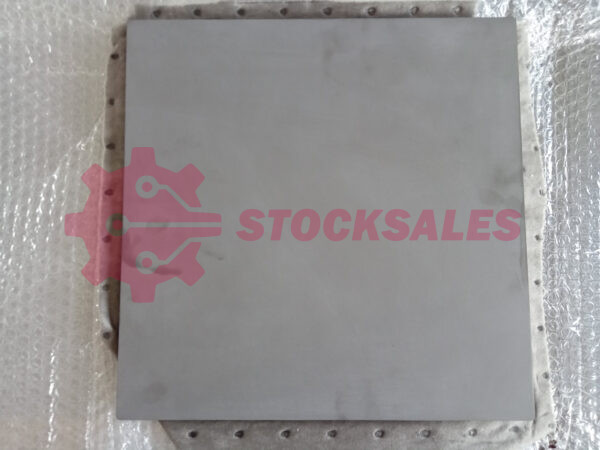

Eccosorb MF500

تماس جهت استعلام قیمت واردات

در انبار موجود نمی باشد

شناسه محصول: MF500 دسته: برچسب: ,

ویژگی های فروشگاه قطعات خاص

جاذب امواج الکترومغناطیسی با دمای بالا

Eccosorb™ MF500 – MF500F

Product Description
This high temperature absorber product line is designed for use at short periods of 500 °F (260 °C) permitting use at high ambients and/or high power levels. Physical and electrical properties are the same as those of the corresponding member of the ECCOSORB MF series.

Features and Benefits

– Rigid
– Machinable
– High temperature 260°c

Technical Specification

  • Typical Properties
    Color
    Dark Grey
    Density (g/cc)
    1.60
    Function
    Termination, attenuator, isolation
    Operating Temperature Max (Celsius)
    260
    Resin
    Epoxy
    Shelf Life
    Minimum 720 Days from Date of Shipment
    Type
    Thermoset machinable stock
  • Thermal Properties
    Thermal Conductivity (W/mK)
    1.44
  • Electromagnetic Properties
    Attenuation
    <217 dB/cm at 18 Ghz
    Product Frequency Range
    1 – 18 Ghz
  • Mechanical Properties
    Coefficient of linear expansion (cm/cm/°c)
    0.000061
    Hardness
    85 shore D
    Tensile Strength (Mpa)
    55.0
  • Dimensions
    Thickness Max (mm)
    50.80
    Thickness Min (mm)
    3.20
  • Compliance
    REACH
    Yes
    ROHS Compliant
    Yes
  • Options
    Option Availability – Machining
    Yes
    Option Availability – PSA
    Yes
    Option Availability – on drawing
    Yes
