The MMA series of silicon micromachined, capacitive accelerometers features signal conditioning, a 4-pole low pass filter and temperature compensation. Zero-g offset, sensitivity, and filter cut-off are factory set and require no external devices. A component self-test capability verifies device functionality.

Features
• Integral Signal Conditioning
• Linear Output
• Ratiometric Performance
• 4th Order Bessel Filter Preserves Pulse Shape Integrity
• Calibrated Self–test
• Low Voltage Detect, Clock Monitor, and EPROM Parity Check Status
• Transducer Hermetically Sealed at Wafer Level for Superior Reliability
• Robust Design, High Shocks Survivability
• Two Packaging Options Available:
1) Plastic DIP for Z Axis Sensing (MMA1201P)

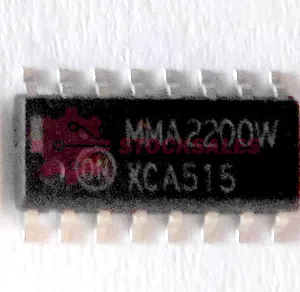

2) Wingback for X Axis Sensing (MMA2200W)

Case 456–06
Alternative: MMA1201P
