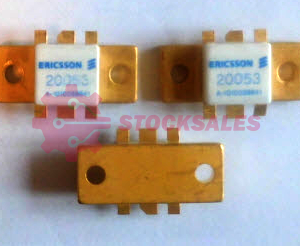

Type Designator: PTB20053

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 145 W

Maximum Collector-Base Voltage |Vcb|: 65 V

Maximum Collector-Emitter Voltage |Vce|: 40 V

Maximum Emitter-Base Voltage |Veb|: 4 V

Maximum Collector Current |Ic max|: 8 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 860 MHz

Forward Current Transfer Ratio (hFE), MIN: 20

Noise Figure, dB: –

Package: M169
