No External Bias Networks Needed
Easy Interfacing
Supply Voltage: 6V
Conversion Gain: 0dB
Applications
Mixers in Radio Transceivers
Phase Comparators
Maximum Inputs: 200mV RMS
Ambient temperature: -30°C to +85°C
Description

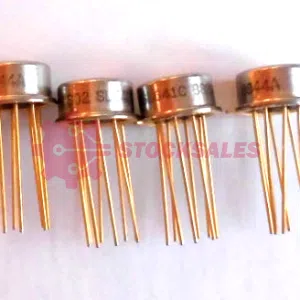

The SL641C is a version of the SL640C intended primarily for use in receiver mixer applications for
which it offers a lower noise figure and lower power consumption. No output load resistor is included and signal leakage is higher, but otherwise the performance is identical to that of the SL640C.
