DIP-20
برای مشاهده دیتاشیت بر روی این علامت کلیک کنید.

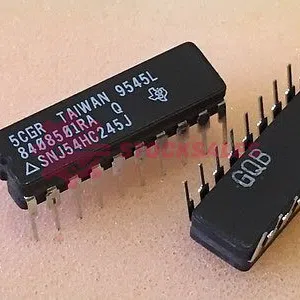

Bus Transceivers Octal Bus Transceivers With 3-State Outputs 20-CDIP -55 to 125
210,000 تومان
6 در انبار
Product Attribute | Attribute Value |
Manufacturer: | Texas Instruments |
Product Category: | Bus Transceivers |
Logic Family: | HC |
Input Level: | CMOS |
Output Level: | CMOS |
Output Type: | 3-State |
High Level Output Current: | – 7.8 mA |
Low Level Output Current: | 7.8 mA |
Propagation Delay Time: | 135 ns |
Supply Voltage – Max: | 6 V |
Supply Voltage – Min: | 2 V |
Minimum Operating Temperature: | – 55 C |
Maximum Operating Temperature: | + 125 C |
Package/Case: | CDIP-20 |
Packaging: | Tube |
Brand: | Texas Instruments |
Function: | Bus Transceiver |
Height: | 4.57 mm |
Length: | 24.2 mm |
Mounting Style: | Through Hole |
Number of Channels: | 8 |
Number of Circuits: | 8 |
Operating Supply Voltage: | 2 V to 6 V |
Operating Temperature Range: | – 55 C to + 125 C |
Polarity: | Non-Inverting |
Product: | Standard Transceivers |
Product Type: | Bus Transceivers |
Series: | SN54HC245 |
Factory Pack Quantity: | 1 |
Subcategory: | Logic ICs |
Supply Current – Max: | 8 uA |
Technology: | CMOS |
Width: | 6.92 mm |
Unit Weight: | 220 mg |
