A transformer which is designed so that part or all of its range of operating frequencies is 20 kilohertz (kilocycles) and below. The maximum value may extend into the radio frequency range. It is generally used in the input, output, amplifier, or oscillator stages of audio and sonar devices.

8 Tab Solder Lug PCB = Leads 1 2 3: 10K/12.5KCT, Leads: 4 5 6: 1.2K/1.5KCT.

IMPEDANCE RATING IN OHMS: 50.0 NOMINAL AND 200.0 NOMINAL SINGLE COMPONENT 1ST SECONDARY 125.0 NOMINAL AND 500.0 NOMINAL SINGLE COMPONENT 2ND SECONDARY 15000.0 NOMINAL SINGLE COMPONENT SINGLE PRIMARY

FREQUENCY RATING: 50.0 HERTZ MINIMUM AND 20.0 KILOHERTZ MAXIMUM SINGLE COMPONENT

(NON-CORE DATA) FREQUENCY RESPONSE TOLERANCE IN DECIBELS: -2.0 TO 2.0 SINGLE COMPONENT

MAXIMUM TRANSFORMER POWER RATING: 200.0 MILLIWATTS SINGLE COMPONENT

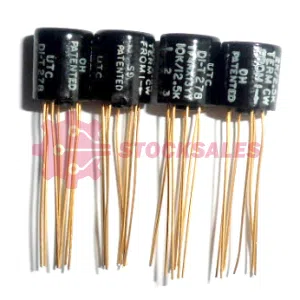

Package: Small Shielded Can, 6 Long Gold Leads.

Dimensions: 8.3mm D x 10.7mm high.

NSN: 5950-00-539-7051

Part Alternates: TF4RX13YY, H22, 58A5A2551, 58A5A255-1, 5950-00-539-7051, 00-539-7051, 5950005397051, 005397051, UTC DI-T278
