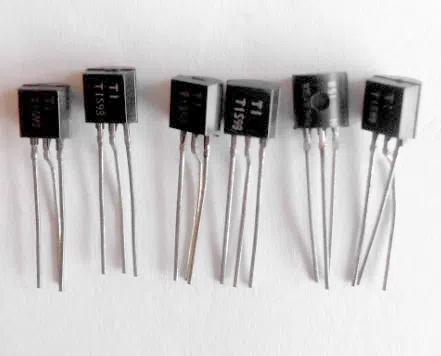

Type Designator: TIS98

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 0.5 W

Maximum Collector-Base Voltage |Vcb|: 60 V

Maximum Collector-Emitter Voltage |Vce|: 60 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.1 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 125 MHz

Collector Capacitance (Cc): 5 pF

Forward Current Transfer Ratio (hFE), MIN: 100

Noise Figure, dB: –

Package: TO92
