Bipolar DC Operational Amplifier
Processing: MIL-STD-883, Method 5004
OBSOLETE

Features:
– Gold Plated Leads
– Low Offset Voltage
– Low Offset Voltage Drift
– Wide Bandwidth
– High Slew Rate

For use as an op amp in analog computers as a precision instrumentation amplifier or in other applications requiring a feedback amplifier useful from DC to 30MHz.

Maximum Ratings:
Supply Voltage: 21.0V
Input Voltage: 1.5V to -6.0V
Differential Input Voltage: +/- 5.0V
Peak Output Current: 50mA
Internal Power Dissipation: 330mW
Operating Temperature Range: -55 to 125 Deg. C

Manufacturer by: Fairchild

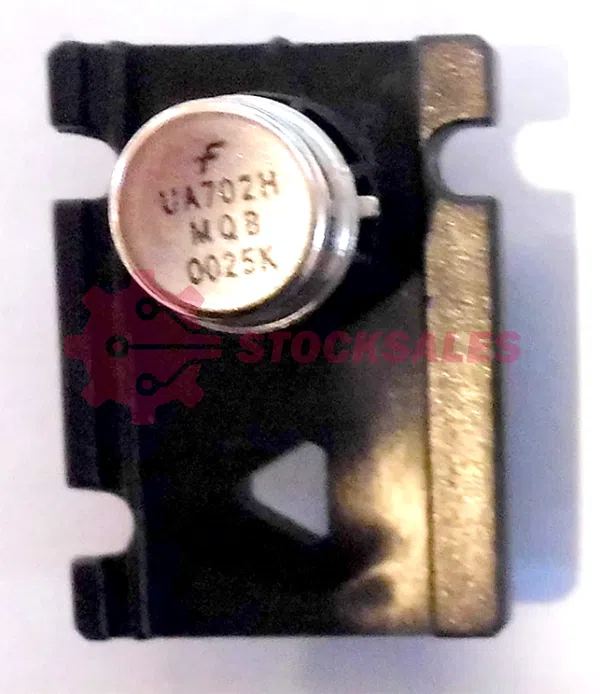

Part Number: UA702HMQB
