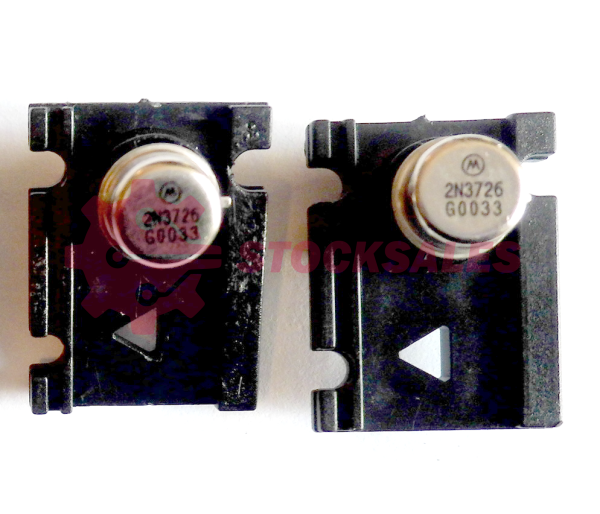

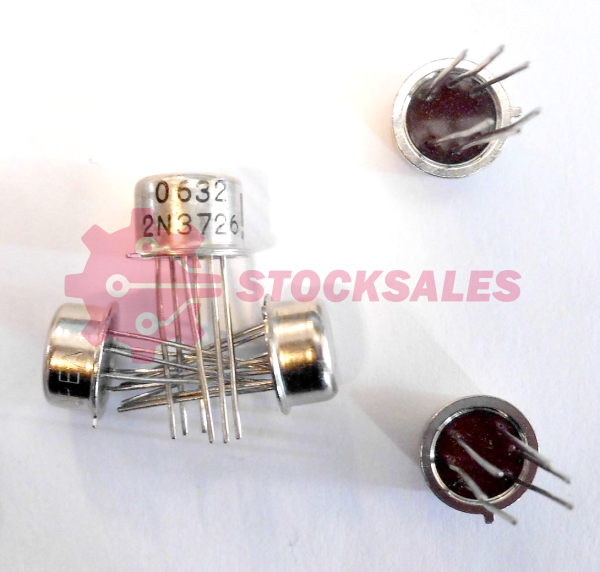

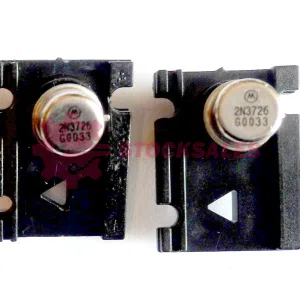

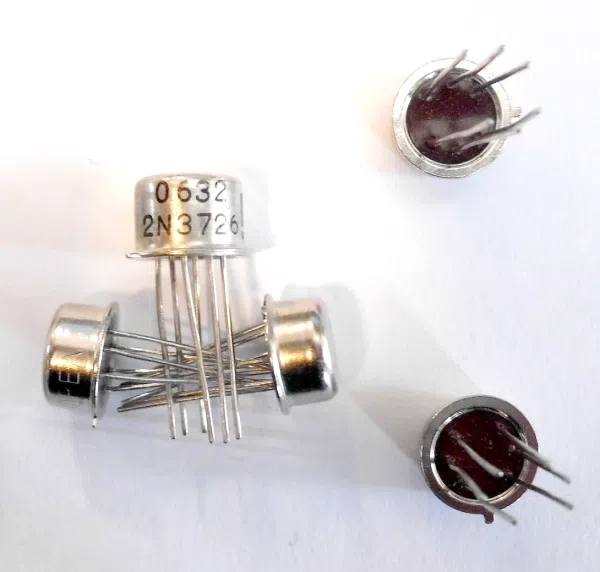

Type Designator: 2N3726

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 0.5 W

Maximum Collector-Base Voltage |Vcb|: 45 V

Maximum Collector-Emitter Voltage |Vce|: 45 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.3 A

Max. Operating Junction Temperature (Tj): 200 °C

Transition Frequency (ft): 200 MHz

Collector Capacitance (Cc): 8 pF

Forward Current Transfer Ratio (hFE), MIN: 135

Noise Figure, dB: –

Package: TO77
