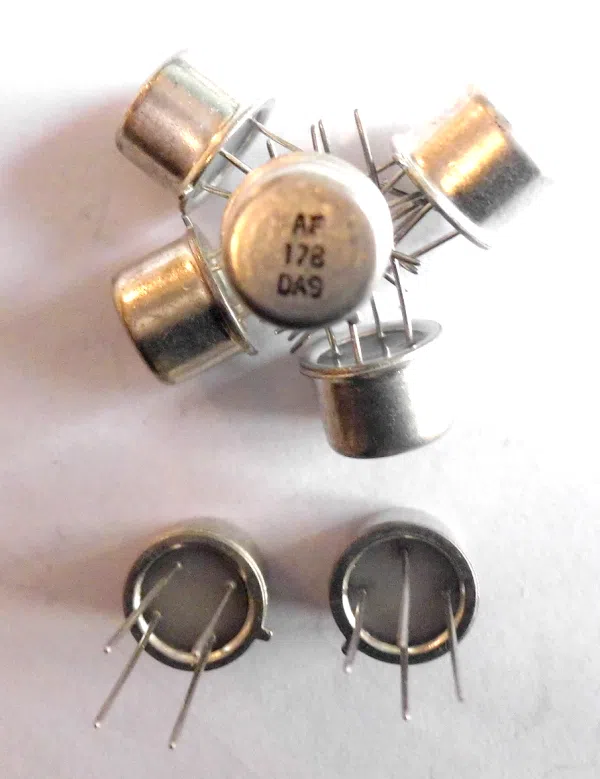

Type Designator: AF178

Material of Transistor: Ge

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 0.075 W

Maximum Collector-Base Voltage |Vcb|: 25 V

Maximum Collector-Emitter Voltage |Vce|: 25 V

Maximum Collector Current |Ic max|: 0.01 A

Max. Operating Junction Temperature (Tj): 75 °C

Transition Frequency (ft): 80 MHz

Collector Capacitance (Cc): 1.8 pF

Forward Current Transfer Ratio (hFE), MIN: 20

Noise Figure, dB: –

Package: TO72
