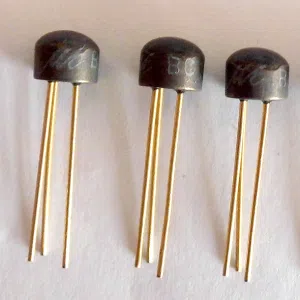

Type Designator: BC171B

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 0.3 W

Maximum Collector-Base Voltage |Vcb|: 45 V

Maximum Collector-Emitter Voltage |Vce|: 45 V

Maximum Emitter-Base Voltage |Veb|: 6 V

Maximum Collector Current |Ic max|: 0.1 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 100 MHz

Collector Capacitance (Cc): 6 pF

Forward Current Transfer Ratio (hFE), MIN: 240

Noise Figure, dB: –

Package: TO92
