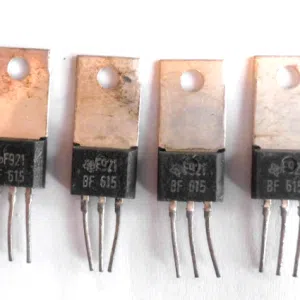

BF615

Type Designator: BF615

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 10 W

Maximum Collector-Base Voltage |Vcb|: 250 V

Maximum Collector-Emitter Voltage |Vce|: 250 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.2 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 70 MHz

Collector Capacitance (Cc): 3 pF

Forward Current Transfer Ratio (hFE), MIN: 30

Noise Figure, dB: –

Package: TO202
