Type Designator: BF595

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 0.25 W

Maximum Collector-Base Voltage |Vcb|: 30 V

Maximum Collector-Emitter Voltage |Vce|: 20 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.03 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 130 MHz

Collector Capacitance (Cc): 1 pF

Forward Current Transfer Ratio (hFE), MIN: 35

Noise Figure, dB: –

Package: TO92

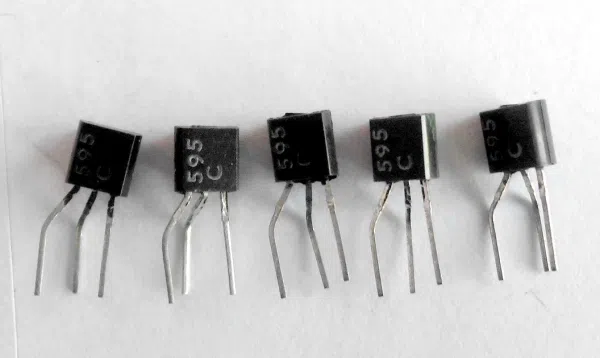

Alternative: BF595C
