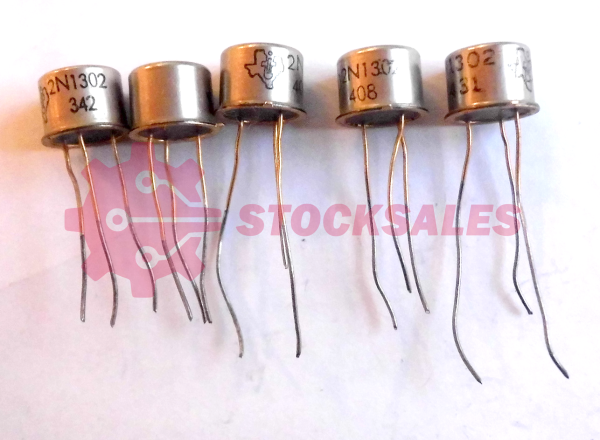

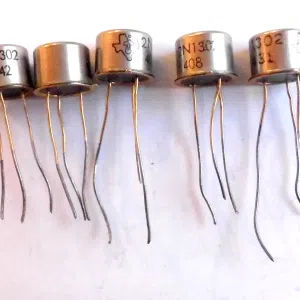

Type Designator: 2N1302

Material of Transistor: Ge

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 0.15 W

Maximum Collector-Base Voltage |Vcb|: 25 V

Maximum Collector-Emitter Voltage |Vce|: 25 V

Maximum Emitter-Base Voltage |Veb|: 25 V

Maximum Collector Current |Ic max|: 0.3 A

Max. Operating Junction Temperature (Tj): 85 °C

Transition Frequency (ft): 1 MHz

Collector Capacitance (Cc): 20 pF

Forward Current Transfer Ratio (hFE), MIN: 20

Noise Figure, dB: –

Package: TO5
