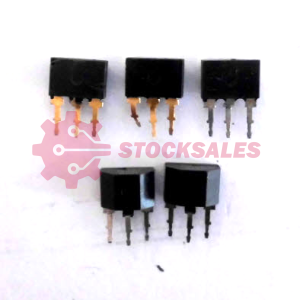

Type Designator: BC147

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 0.25 W

Maximum Collector-Base Voltage |Vcb|: 50 V

Maximum Collector-Emitter Voltage |Vce|: 45 V

Maximum Emitter-Base Voltage |Veb|: 6 V

Maximum Collector Current |Ic max|: 0.2 A

Max. Operating Junction Temperature (Tj): 125 °C

Transition Frequency (ft): 150 MHz

Collector Capacitance (Cc): 5 pF

Forward Current Transfer Ratio (hFE), MIN: 110

Noise Figure, dB: –

Package: X09
