The SL532C is a monolithic integrated circuit designed for use in wideband limiting IF strips It offers a bandwidth of over 400MHz and very low phase shift with amplitude The small signal gain is 12Db and the limited output is 1V peak to peak. The use of a 5GHz IC process has produced a circuit which gives less than 1° phase shift when overdriven by 12dB. The amplifier has internal decoupling capacitors to ease the construction of cascaded strips and the number of external components required has been minimised.
The device is also available as the DES9052101/AC/CMAR which has guaranteed operation over the full Military Temperature Range and is screened in accordance with the DESC approved Standardised Military Drawing Data is available separately.

FEATURES
■ Low Phase Shift V. Amplitude
■ Wide band width
■ Low External Component Count

ABSOLUTE MAXIMUM RATINGS
Supply voltage +15 volts
Storage temperature range -55°C to +150°C
Operating temperature range -55°C to +125°C

ORDERING INFORMATION
SL532C

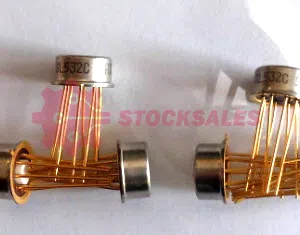

SL532CCM
SL532
