SL610C

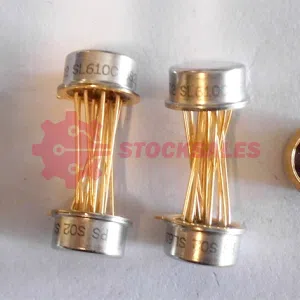

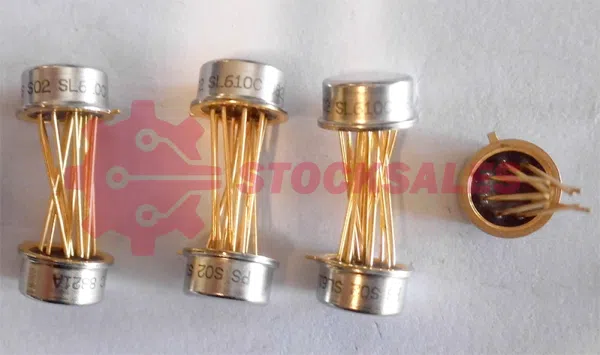

Hermetic metal can and golden pins
FEATURES

4dB Noise Figure
High I/P Impedance
Low O/P Impedance
140 MHz Bandwidth (SL610)
50dB AGC Range (SL610 – SL611)
70dB AGC Range (SL612)
On-Chip Supply Decoupling
Low External Component Count
Operating Temperature: -30°C to +85°C
Description
The SL610C, SL611C and SL612C integrated RF amplifiers are similar circuits, having typical voltage gains of 10, 20 and 50 and upper 3dB gain points at 140MHz, 100MHz and 15MHz respectively. The first two draw a supply current of about 15mA at 6V and have some 50dB AGC range while the SL612C draws 3.5mA and has 70dB of AGC. All three are intended to use with +6V supplies and have internal decoupling. They will drive an output signal of about 1V RMS.
The cross-modulation of the circuits is 40dB down on signal at 1V RMS output with no AGC, and at 250mV RMS input with full AGC. The input and output admittances of the circuits are not significantly affected by AGC level.
